Double Opening Firebox
Afirebox offers an Industry first `performance driven' bioethanol fireplace for indoor and outdoor spaces. The fireplace is designed for grand spaces delivering large dynamic flames with significant heat output. The Burners have controllable flame size achieving temperature control, fuel efficiency and longer burning times, an industry first and exclusive to Afirebox. You can create a unique fireplace or install them into existing masonry fireplaces.
Single Opening Firebox
A firebox insert – all in one solution, where casing comes with an ethanol insert, ready to be installed in the wall opening. Thanks to its zero-clearance feature, the opening can be made of and surrounded by any kind of finishing material. Firebox is one of the most technologically advanced fireplaces on the market, using the BEVA. This solution is for the most demanding clients, who desire a Net Zero approach combined with a top-notch technology, safety and comfort of use. Forma comes in seven shapes and seven different lengths. Just like all our ethanol fireplaces, it does not require chimney or any hard connections. Install and enjoy the ambience and the luxury of a real fireplace, even in places where no other fireplace is possible.
FB-38-SS-Black
FB-96-SS-Black

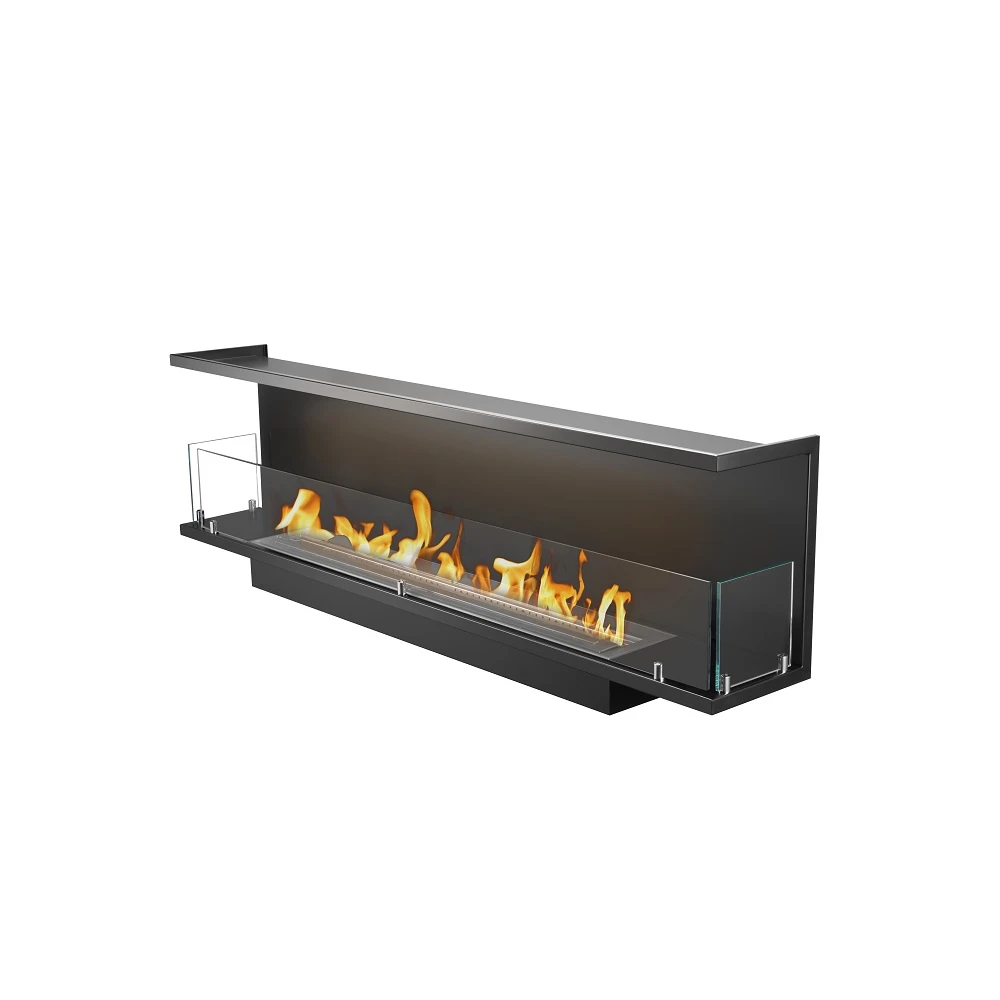

FS-84-3 Sides-Black
The Fireboxes used with the linear burners are available for inbuilt installations. The Fireboxes capture and direct the significant heat output efficiently into the room. Black interiors enhance the appearance of the flame. The Fireboxes are equally well suited for minimalist contemporary settings or traditional fireplaces with a mantelpiece.
The Double Sided fireplace range offers endless interior design options while being completed with the industry's longest linear burners that produce a stretched continuous flame for dramatic effect to be enjoyed. The unique design enables flush fitting into the surface, so that the flames can be the centre of attention. The Double Sided fireplaces are available with manual burner and automatic fireplace , with the choice of brushed stainless steel or black facias to finish off the setting.
With manual fireboxes, you will need to light up the flame with the lighter and extinguish it with by closing a damper. With smart fireboxes with electronic ignition can be controlled with a push of a button on a burner, remote control, or your phone via an app that is connected to wi-fi produced by the burner. They can also be connected to your smart home.
Advantages of Our Ethanol Firebox: A Premium Heating Solution
The Ethanol Firebox delivers consistent and efficient heat output, creating a cozy and inviting atmosphere while reducing reliance on central heating systems. Designed with advanced safety features, the Ethanol Firebox ensures secure operation. The burner is engineered to control flames effectively, and the built-in cabinet provides additional protection and stability.With no ash, soot, or residue to clean up, maintaining the Ethanol Firebox is effortless. Simply refill the burner with ethanol fuel, and it's ready to use.
Sleek, Modern Design:
+
-
The Ethanol Firebox is seamlessly built into the wall, offering a minimalist and contemporary aesthetic that enhances any interior. Its clean lines and customizable cabinet design make it a stunning focal point for luxury spaces.
Eco-Friendly and Sustainable:
+
-
Ethanol fuel is a renewable energy source that burns cleanly, producing no smoke, ash, or harmful emissions. This makes it an environmentally conscious choice for heating.
Easy Installation and Flexibility:
+
-
Unlike traditional fireplaces, the Ethanol Firebox requires no chimney, gas lines, or complex ventilation systems. Its built-in design allows for easy installation in virtually any room, offering greater flexibility in placement.
Versatile and Customizable:
+
-
With intuitive controls and easy ignition, the Ethanol Firebox offers a hassle-free experience. It's designed for convenience, allowing users to enjoy the ambiance of a real flame with minimal effort.
Luxurious Ambiance:
+
-
The Ethanol Firebox provides the beauty and warmth of a real flame, creating a captivating ambiance that enhances relaxation and comfort.
Ideal for the most demanding clients, our Ethanol Firebox combines cutting-edge technology, safety, and elegance to deliver a premium heating solution that exceeds expectations.
Powerful Solutions For Home Decoration
Our Ethanol Firebox is a sophisticated and innovative heating solution designed for the most discerning clients who seek a seamless blend of modern technology, elegant design, and unparalleled safety. This state-of-the-art system consists of two key components: a sleek, custom-built cabinet and a high-performance ethanol burner, seamlessly integrated into the wall for a minimalist and contemporary aesthetic.
Crafted to meet the highest standards of quality, our Ethanol Firebox is the perfect choice for those who desire a luxurious fireplace experience without compromising on functionality or safety. The built-in design ensures a clean, space-saving installation, making it an ideal addition to high-end residential or commercial spaces.
With cutting-edge technology at its core, our Ethanol Firebox offers effortless operation, exceptional heat output, and eco-friendly fuel efficiency. Safety is paramount, with advanced features that ensure worry-free use, while the elegant design adds a touch of sophistication to any interior.
For clients who demand the very best, our Ethanol Firebox represents the ultimate fusion of style, innovation, and comfort-a truly premium solution for modern living.
product Sizes & specs
Single side opening , double side opening, three side opening, left corner opening, right corner opening ,all the styles are supported in customization
| Model |
FB24
|
FB38
|
FB48
|
FB72
|
| products |
 |
 |
 |
 |
| sizes | 609.6mm L* 340mm W * 914.4mm H | 980mm L* 340mm W * 580mm H | 1220mm L* 381mm W * 717mm H | 1829mm L* 381mm W * 717mm H |
| burner Option A | 16'' Manual Burner | 24'' Manual Burner | 36'' Manual Burner | 60'' Manual Burner |
| Volume/Burn Time | 2.5 L /2.8 Hours | 7 L/ 11 Hours | 11 L/ 11 Hours | 18 L/ 10 Hours |
| burner Option B | 18'' Smart Burner | 24'' Smart Burner | 36'' Smart Burner | 60'' Smart Burner |
| Volume/Burn Time | 2.6 L /4.3 Hours | 4.1 L /5 Hours | 7.3 L /5.7 Hours | 13.5 L /6.1 Hours |
Installation Guide
Here's a clearer, step-by-step guide for installing a firebox in a framed wall with cement board and finishing materials:
Key Notes:Always follow the firebox manufacturer's guidelines for clearances and materials.
Use non-combustible materials (cement board, metal studs) near the firebox.
Check local building codes for fireplace installation requirements.
Prepare the Base
Line the base of the framed space with cement board (for heat resistance). Insert the firebox into the base, ensuring it sits securely.
Frame Around the Firebox
Continue building the wall, maintaining a cement board layer between the studs and the firebox on all sides (for fire safety).The first stud on either side of the firebox must be flush with the firebox and its flange (for proper support).
Add Horizontal Support
Install a horizontal stud (header) above the firebox to allow continued wall framing.
Secure the top of the horizontal stud directly to the firebox brackets using 0.5-inch metal zip screws (for stability).
Secure the Firebox
Screw around the firebox flange into the studs to firmly anchor it in place.
Finish the Surround
Cover the firebox and framing with sheetrock, WonderBoard, or stone veneer as desired.
Ensure combustible materials (like regular drywall) are kept at a safe distance if required by the manufacturer.
Install the Glass
Mount the glass front onto the firebox according to the manufacturer's instructions.
Ethanol Firebox Insert Customization Service Supported
Ethanol fireboxes are great for creating a custom ethanol fireplace that is doesn't need a chimney, venting, or gas lines. Ethanol flames are real flames produced by burning eco-friendly ethanol fuel that burns cleanly without polluting the air.
Ethanol fireboxes come in a variety of sizes, feature a single sided, double-sided, or bay (open corner) design, and zero clearance installation. Built with 3mm thick 304 brushed stainless steel and insulated double wall construction, these fireboxes don't require any additional insulation. A 3-5 year manufacturer's warranty is another added bonus that will make sure that these eco-friendly fireplaces will serve you for years to come.
01
Pre-sale 3D Design
Any tailored design is welcomed. With a referential project picture and detailed wall dimensions, we make our client 3D diagram to give a pre-look of how the dreaming fireplace wall will be.
02
Manage Production
After some necessary revise, we will make final CAD drawing for client's confirmation and go ahead with production. Production status will be reported in a timely manner.
03
Installation & Testing online support
When fireplace is installed, we'd lovely to take video call to assist with contractor for any questions about our product how to use and precautions.
We are located the in Hangzhou city . After more than 15 years growth, we are now having 1400 square meter factory working area with 3 floors building.Equipped with cutting bending machine, punching machines ,2*production line,1*testing room, 2*assembly line, 1*packing line.
Professional team
Fast delivery
1400㎡
Factory Area
42+
Exported Countries
5.78M
Annually Revenue
25K
Monthly PV
